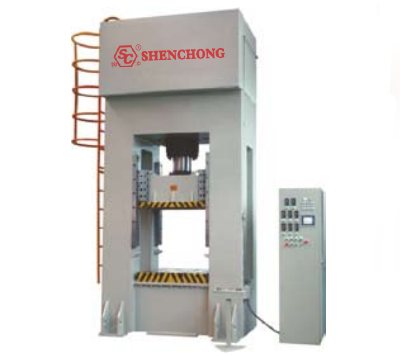

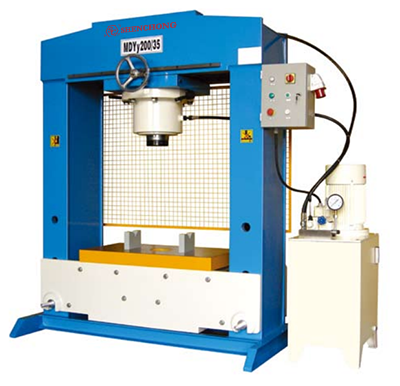

- Optimally designed steel-frame structure, is sturdy and durable.
- Single piston double-acting hydraulic oil cylinder, is durable.
- Up stroke and down stroke of cylinder rod controlled by manual, is convenient and flexible.
- Beam of work platform moves lifting device from up to down, is convenient and easy.
Model | MDY 100/35 | MDY 150/35 | MDY 200/35 | MDY 300/35 |
Maximum Pressure (kN) | 1000 | 1500 | 2000 | 3000 |
Hydraulic Pressure (Mpa) | 30 | 30 | 30 | 28.5 |
Stroke of Cylinder rod (mm) | 350 | 350 | 350 | 350 |
Working Speed (mm/s) | 7.6 | 4.9 | 3.9 | 5.9 |
Size of Worktable (mm) | 650X440 ∅150 | 700X530 ∅120 | 750X550 ∅150 | 800X650 ∅150 |
Adjustment distance of Worktable (mmxn) | 250x3 | 300x2 | 300x2 | 300x2 |
Motor Power (Kw) | 7.5 | 7.5 | 7.5 | 22 |
Weight (kg) | 1420 | 1850 | 2530 | 3350 |
Model | MDY 400/35 | MDY 500/35 | MDY 600/35 |
Maximum Pressure (kN) | 4000 | 5000 | 6000 |
Hydraulic Pressure (Mpa) | 30 | 30 | 30 |
Stroke of Cylinder rod (mm) | 350 | 350 | 350 |
Working Speed (mm/s) | k15.5/m3.4/h25.4 | k12.2/m2.7/h19.9 | k9.9/m2.2/h16.8 |
Size of Worktable (mm) | 1000X700 ∅150 | 1190X760 ∅180 | 1190X880 ∅180 |
Adjustment distance of Worktable (mmxn) | Fixed | Fixed | Fixed |
Motor Power (Kw) | 15 (variable pump station) | 15 (variable pump station) | 15 (variable pump station) |
Weight (kg) | 4750 | 6980 | 7680 |

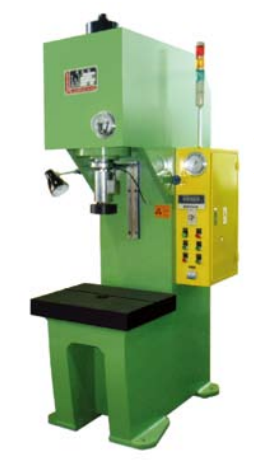

Single column hydraulic presses are also known as C-frame hydraulic press. Because the body of this press is in C-type single-arm structure. Excellent rigidity, guide performance, speed, and high precision are the advantages of single-column hydraulic presses. Automotive, electronics, household and medical industries utilize the C-frame hydraulic presses for applications like sheet metal forming, plastic forming, bending, deep drawing, etc. The C-frame presses are convenient for small and mid-sized facilities because of its less floor space consumption.
Type | Unit | 2.5T | 4T | 6.3T | 10T | 16T | |
Nominal Force | KN | 25 | 40 | 63 | 100 | 160 | |
The Maximum Working Pressure of the Fluid | Mpa | 5 | 8 | 8 | 8 | 12.8 | |
The Maximum Distance Between The Under Surface of the Slipper and The Surface of Table | mm | 350 | 380 | 400 | 500 | 500 | |
Max. Stroke of Slide | mm | 160 | 200 | 250 | 300 | 350 | |
Descent Speed of the Slipper | mm/s | 50 | 50 | 50 | 50 | 50 | |
Return Speed of the Slipper | mm/s | 100 | 100 | 100 | 100 | 105 | |
Throat Depth | mm | 160 | 180 | 200 | 250 | 280 | |
The Size of Table | Front, Rear | mm | 320 | 320 | 400 | 430 | 500 |
Left. Right | mm | 480 | 480 | 500 | 550 | 600 | |
Height of The Table To The Floor | mm | 700 | 710 | 700 | 700 | 710 | |
The Diameter Of The Cutting Hole | mm | 70 | 70 | 80 | 80 | 100 | |
Diameter of The Cylinder Hole | mm | 80 | 80 | 100 | 125 | 125 | |
Diameter Center of Plunger Bar | mm | 18 | 18 | 30 | 30 | 30 | |
Depth Center of Plunger Bar | mm | 30 | 30 | 60 | 60 | 60 | |
Screw Thread Diameter of Plunger Bar | mm | 36 | 36 | 50 | 60 | 60 | |
Main Motor Power | KW | 1.5 | 1.5 | 2.2 | 4 | 4 | |
Size of The Machine Tool | Front, Rear | mm | 750 | 750 | 900 | 950 | 1050 |
Left. Right | mm | 600 | 600 | 610 | 630 | 650 | |
The Height Above The Floor | mm | 1700 | 1700 | 1800 | 1950 | 2100 | |
Total Weight (Approx) | T | 0.6 | 0.7 | 1 | 1.2 | 1.5 |
Type | Unit | 25T | 40T | 63T | 100T | 160T | |
Nominal Force | KN | 250 | 400 | 630 | 1000 | 1600 | |
The Maximum Working Pressure of the Fluid | Mpa | 16 | 22.2 | 24.3 | 25.8 | 25.5 | |
The Maximum Distance Between The Under Surface of the Slipper and The Surface of Table | mm | 550 | 600 | 630 | 800 | 1000 | |
Max. Stroke of Slide | mm | 350 | 400 | 500 | 500 | 500 | |
Descent Speed of the Slipper | mm/s | 50 | 50 | 50 | 36 | 25 | |
Return Speed of the Slipper | mm/s | 105 | 100 | 90 | 90 | 65 | |
Throat Depth | mm | 300 | 320 | 350 | 350 | 325 | |
The Size of Table | Front, Rear | mm | 500 | 550 | 550 | 650 | 650 |
Left. Right | mm | 600 | 700 | 850 | 800 | 800 | |
Height of The Table To The Floor | mm | 710 | 710 | 710 | 730 | 750 | |
The Diameter Of The Cutting Hole | mm | 100 | 100 | 140 | 140 | 200 | |
Diameter of The Cylinder Hole | mm | 140 | 150 | 180 | 220 | 280 | |
Diameter Center of Plunger Bar | mm | 35 | 35 | 40 | 40 | ||
Depth Center of Plunger Bar | mm | 60 | 60 | 60 | 65 | ||
Screw Thread Diameter of Plunger Bar | mm | 74 | 74 | 100 | 150 | ||
Main Motor Power | KW | 4 | 5.5 | 7.5 | 7.5 | 11 | |
Size of The Machine Tool | Front, Rear | mm | 1100 | 1250 | 1340 | 1450 | 1550 |
Left. Right | mm | 650 | 780 | 800 | 1000 | 1000 | |
The Height Above The Floor | mm | 2150 | 2300 | 2500 | 2800 | 2950 | |
Total Weight (Approx) | T | 2 | 2.5 | 4 | 5.5 | 9 |
Type | Unit | 250T | 315T | 400T | 500T | |
Nominal Force | KN | 2500 | 3150 | 4000 | 5000 | |
The Maximum Working Pressure of the Fluid | Mpa | 25.5 | 24.6 | 24.7 | 25 | |
The Maximum Distance Between The Under Surface of the Slipper and The Surface of Table | mm | 1000 | 1100 | 1300 | 1400 | |
Max. Stroke of Slide | mm | 500 | 600 | 700 | 700 | |
Descent Speed of the Slipper | mm/s | 23 | 20 | 18 | 20 | |
Return Speed of the Slipper | mm/s | 55 | 65 | 60 | 60 | |
Throat Depth | mm | 360 | 400 | 450 | 500 | |
The Size of Table | Front, Rear | mm | 660 | 750 | 800 | 950 |
Left. Right | mm | 800 | 900 | 1000 | 1000 | |
Height of The Table To The Floor | mm | 710 | 700 | 750 | 750 | |
The Diameter Of The Cutting Hole | mm | 200 | 220 | 250 | 250 | |
Diameter of The Cylinder Hole | mm | 360 | 400 | 450 | 500 | |
Diameter Center of Plunger Bar | mm | |||||
Depth Center of Plunger Bar | mm | |||||
Screw Thread Diameter of Plunger Bar | mm | |||||
Main Motor Power | KW | 22 | 22 | 30 | 45 | |
Size of The Machine Tool | Front, Rear | mm | 1767 | 2100 | 2300 | 2500 |
Left. Right | mm | 1100 | 1200 | 1300 | 1400 | |
The Height Above The Floor | mm | 3305 | 3500 | 2800 | 4000 | |
Total Weight (Approx) | T | 15 | 18.5 | 28 | 36 |
It is applicable in the field of all stretching, bending and rolling and forming processing. Large motor and agriculture vehicle covering parts and others. Boiler end enclosure, liquefied container, stainless steel washing trough, public bath and etc. Shipping, aviation, space flight and etc.
Optional accessories or functions: photo-electricity protection device, moving working table, retooling floating lead rail and roll bracket, blanking buffer device, punch quick clamp device, touch industry display screen, stroke, pressure, speed digital display and numerical control device, hydraulic system heating, cooling device, displacement heat transmission device. Pressure side slide, hydraulic die cushion four horns separate pressure adjustment device (stretch the unsymmetrical parts).
Type | Unit | 40T | 63T | 100T | |
Rated Pressure | kN | 400 | 630 | 1000 | |
Maximum Pressure of Liquid | Mpa | 22.2 | 24.3 | 25.8 | |
Maximum Opning Height | mm | 600 | 700 | 900 | |
Lift Out Force | kN | 63 | 100 | 250 | |
Ejector Stroke | mm | 120 | 160 | 200 | |
Slide Stroke | mm | 400 | 450 | 600 | |
The Working Velocity of the Slipper | Descent | mm/s | 40 | 40 | 76 |
Working | mm/s | 10 | 10 | 8-15 | |
Return | mm/s | 60 | 60 | 85 | |
The Size of Table | F-B | mm | 400 | 500 | 710 |
L-R | mm | 400 | 500 | 580 | |
Size of the Machine Tool | F-B | mm | 1484 | 1900 | 2650 |
L-R | mm | 1000 | 1150 | 1150 | |
Above Ground | mm | 2406 | 2430 | 3300 | |
Main Motor Power | KW | 5.5 | 5.5 | 7.5 | |
Total Weight (approw) | T | 4.5 | 6 | 8 |
Type | Unit | 200T | 250T | 315T | |
Rated Pressure | kN | 2000 | 2500 | 3150 | |
Maximum Pressure of Liquid | Mpa | 24.4 | 25.5 | 24.6 | |
Maximum Opning Height | mm | 1100 | 1100 | 1250 | |
Lift Out Force | kN | 400 | 400 | 630 | |
Ejector Stroke | mm | 250 | 250 | 300 | |
Slide Stroke | mm | 700 | 700 | 800 | |
The Working Velocity of the Slipper | Descent | mm/s | 100 | 100 | 100 |
Working | mm/s | 8-15 | 8-15 | 8-15 | |
Return | mm/s | 100 | 100 | 100 | |
The Size of Table | F-B | mm | 900 | 1000 | 1200 |
L-R | mm | 900 | 1000 | 1200 | |
Size of the Machine Tool | F-B | mm | 2780 | 2900 | 3440 |
L-R | mm | 1350 | 1450 | 1550 | |
Above Ground | mm | 3900 | 4000 | 4600 | |
Main Motor Power | KW | 11 | 11 | 18.5 | |
Total Weight (approw) | T | 16 | 18 | 22 |
Type | Unit | 400T | 500T | 800T | 1000T | |
Rated Pressure | kN | 4000 | 5000 | 8000 | 10000 | |
Maximum Pressure of Liquid | Mpa | 24.7 | 25 | 24.4 | 25.5 | |
Maximum Opning Height | mm | 1400 | 1500 | 1800 | 1800 | |
Lift Out Force | kN | 1000 | 1000 | 2000 | 2000 | |
Ejector Stroke | mm | 300 | 300 | 250 | 400 | |
Slide Stroke | mm | 800 | 900 | 1000 | 1000 | |
The Working Velocity of the Slipper | Descent | mm/s | 100 | 100 | 100 | 120 |
Working | mm/s | 8-15 | 5 | 5-12 | 5-12 | |
Return | mm/s | 100 | 100 | 90 | 90 | |
The Size of Table | F-B | mm | 1300 | 1400 | 2400 | 2500 |
L-R | mm | 1300 | 1400 | 1600 | 1800 | |
Size of the Machine Tool | F-B | mm | 3440 | 4100 | 4400 | 4500 |
L-R | mm | 1550 | 1650 | 1850 | 2000 | |
Above Ground | mm | 4750 | 5348 | 5600 | 5700 | |
Main Motor Power | KW | 18.5 | 37 | 74 | 74 | |
Total Weight (approw) | T | 28 | 42 | 70 | 95 |

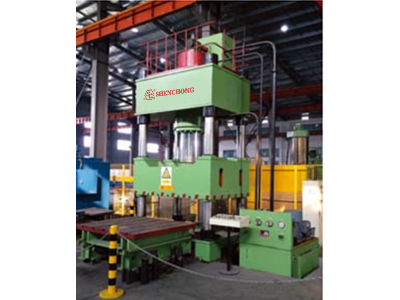

Four-column hydraulic presses are used for precision tooling applications. Four-column four-beam hydraulic press, four-column three-beam hydraulic press, and four-column two-beam hydraulic press are the different categories available recently. These presses are highly recommended for applications where pressure is a major consideration. The four-column presses will provide equal pressure distribution. Flexibility, versatility, smooth transitions, ease of operation, fast setup and maintenance, low-cost, etc… are some advantages of the four-column hydraulic press.
1) Wide application. this machine can be widely used in processing various of plastic material, and in molding products, such as sophisticated case, strap, metal etc
2) High efficiency, low energy consumption.
3) Second speed at work is adjustable, the movement of noload is fast, and molding process is by die compaction
4) The up-down position of slider is limited. The speed of slider is adjustable and easy to operate.
5) It has pressure protection, limit switch and control function.
6) This machine has three ways to work: inching adjustable, semi-automatic work and automatic work.
Type | Unit | 45T | 63T | 100T | |
Rated Pressure | kN | 450 | 630 | 1000 | |
Maximum Pressure of Liquid | Mpa | 25 | 24.3 | 25.8 | |
Maximum Opning Height | mm | 600 | 700 | 900 | |
Lift Out Force | kN | 63 | 100 | 200 | |
Ejector Stroke | mm | 120 | 160 | 200 | |
Slide Stroke | mm | 350 | 500 | 500 | |
The Working Velocity of the Slipper | Descent | mm/s | 40 | 50 | 100 |
Working | mm/s | 8-15 | |||
Return | mm/s | 60 | 60 | 60 | |
The Size of Table | F-B | mm | 400 | 500 | 580 |
L-R | mm | 400 | 500 | 710 | |
Size of the Machine Tool | F-B | mm | 1380 | 780 | 1800 |
L-R | mm | 100 | 500 | 1020 | |
Above Ground | mm | 2360 | 2430 | 3500 | |
Main Motor Power | KW | 4 | 5.5 | 5.5 | |
Total Weight (approw) | T | 2.8 | 3.5 | 5 |
Type | Unit | 160T | 200T | 315T | 400T | |
Rated Pressure | kN | 1600 | 2000 | 3150 | 4000 | |
Maximum Pressure of Liquid | Mpa | 25.5 | 24.4 | 24.6 | 24.7 | |
Maximum Opning Height | mm | 900 | 1120 | 1250 | 1400 | |
Lift Out Force | kN | 250 | 400 | 630 | 630 | |
Ejector Stroke | mm | 200 | 250 | 300 | 300 | |
Slide Stroke | mm | 500 | 700 | 800 | 800 | |
The Working Velocity of the Slipper | Descent | mm/s | 100 | 100 | 100 | 100 |
Working | mm/s | 8-15 | 8-15 | 8-15 | 8-15 | |
Return | mm/s | 60 | 70 | 70 | 70 | |
The Size of Table | F-B | mm | 800 | 900 | 1260 | 1200 |
L-R | mm | 800 | 900 | 1260 | 1260 | |
Size of the Machine Tool | F-B | mm | 1000 | 1200 | 1500 | 1560 |
L-R | mm | 800 | 900 | 1200 | 1200 | |
Above Ground | mm | 3350 | 3690 | 3900 | 4050 | |
Main Motor Power | KW | 11 | 11 | 18.5 | 22 | |
Total Weight (approw) | T | 8.5 | 10 | 15 | 22 |
Type | Unit | 500T | 630T | 800T | 1000T | |
Rated Pressure | kN | 5000 | 6300 | 8000 | 10000 | |
Maximum Pressure of Liquid | Mpa | 25 | 25 | 24.4 | 25.5 | |
Maximum Opning Height | mm | 1500 | 1500 | 1800 | 1800 | |
Lift Out Force | kN | 1000 | 1250 | 1800 | 1600 | |
Ejector Stroke | mm | 300 | 400 | 400 | 400 | |
Slide Stroke | mm | 900 | 900 | 1000 | 1000 | |
The Working Velocity of the Slipper | Descent | mm/s | 100 | >100 | 120 | 120 |
Working | mm/s | 10 | 12 | 5-12 | 5-12 | |
Return | mm/s | 80 | 65 | 80 | 90 | |
The Size of Table | F-B | mm | 1400 | 1600 | 2400 | 2500 |
L-R | mm | 1400 | 1600 | 1600 | 1800 | |
Size of the Machine Tool | F-B | mm | 4100 | 4390 | 4300 | 4700 |
L-R | mm | 2420 | 2520 | 2500 | 2600 | |
Above Ground | mm | 5380 | 6000 | 6100 | 6200 | |
Main Motor Power | KW | 37 | 55 | 75 | 75 | |
Total Weight (approw) | T | 30 |
