2WEK Tandem CNC Press Brake Machine
Description
|
Parameter
|
Configuration
|
Video

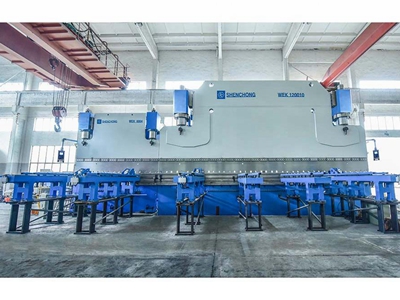

SHENCHONG has produced 1000Ton/12000mm 2WEK CNC tandem press brake machine, (1200Ton/10000mm+600Ton/4000mm) CNC tandem press brake with high precision and high efficiency.

The tandem press brake machine are used to bend heavy duty sheet metal plate. With different press brake dies, it could make various work-pieces, which are widely used in air-plane, shipment, auto, engineering machinery, lamp pole, light pole, electric power pole, transformer and other relative lines.

Industrial Tandem Press Brake

Sandblasted and sprayed with anti-rust paint, the machine frame is processed by imported CNC three-dimensional processing center, which ensures the parallelism and verticality of each installation. The frame is welded by steel plate of good rigidity and strength.

Electrical-hydraulic proportion valves linear encoder. The press in air and the one of different angles are available. Motorized rear sheet supporting fitting.

Industrial WE67K Tandem hydraulic press brake sheet metal bending machine is able to have 16+2 Axis.

- Y control numerical axis of oil cylinder on both sides

- X controls back gauge to move front and rear

- V for oil cylinder compensation

- Z refer to motorized side unloading device.

Heavy duty tandem press brake is driven by hydraulic pressure and controlled by CNC. The machine could attain quick down, slow-down of ram, pressure steady while working, quick returning and intermediate stop functions. It could be operated either single or double ways.


Advantages and differences:

- The tandem press brake is used to bend heavy duty sheet metal plate. Wuxi SHENCHONG connect two CNC press brakes together as a whole machine to do bending works.

- The two CNC press brake with two CNC controller system can work together or separate to bend workpieces independently.

- The back gauge and front feeding device is specially designed for large workpieces to reduce labor intensity and improve work efficiency.

- Price of singe press brake longer than 8000mm is very expensive, tandem press brake is a better choice for customer with bending request longer than 8000mm.


CNC Press Brake Standard Components:

- ESA S630 CNC control unit

- 4+1 or more axis CNC

- Y1, Y2 precision ram positioning

- Standard X and R-axis

- CNC dynamic crowning

- Large open height/ stroke/ throat depth

- Double section arm NOK seal ring

- Schneider and ABB electric components

- High Siemens efficiency motor

- Stand By Function for energy-saving drive

- Rear cover: Safety barriers (Category IV)

- Sheet metal frontal supports

- SUNNY Pump

- ABBA Ball screw and linear guide

- Rear stop fingers 3 pieces and double linear guide


Applications:

Used to bend heavy duty sheet metal plate.

Any sheet metal plate length bending requests longer than 8000mm.

- Tubes

- Aerospace

- Shipments

- Automobiles

- Transformers

- Street light pole

- Electric power pole

- Engineering machinery...
