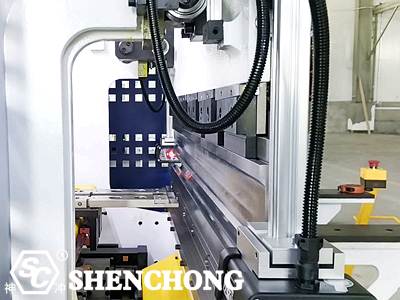

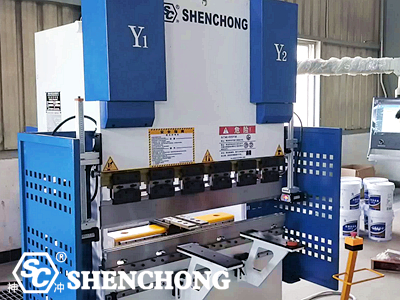

SHENCHONG 40T 1000MM CNC press brake machine is a typical small CNC hydraulic bending machine.

EL15T Control System | 4-Axis | Small High-Precision Sheet Metal Bending Solution

The WEK 40TX1000mm is a CNC hydraulic bending machine designed for processing small, precision, and short-sized sheet metal parts. The machine uses a nominal pressure of approximately 400 kN (40 tons) and a bending length of 1000 mm.

It is equipped with the SC EL15T CNC system, with a typical 4-axis configuration of Y1, Y2, X, and R, enabling simultaneous control of the slide block on both sides and front-back and vertical positioning of the back gauge.

Compared to large bending machines, the core value of this configuration lies not in its "large tonnage," but in its miniaturization, precise positioning, rapid changeover, lower investment costs, and adaptability to small workpieces and diverse production processes.

1. Overview of SC WEK 40T 1000MM CNC Press Brake Machine

The WEK 40T×1000mm CNC hydraulic press brake machine is a small, high-precision CNC bending machine, mainly used for precision bending of thin plates and small-sized workpieces. This model is typically equipped with a 4-axis control system and features an EL15T CNC system, achieving a good balance between precision, efficiency, and cost-effectiveness.

- Nominal Pressure: 40 tons (approximately 400kN)

- Bending Length: 1000mm

- Number of Control Axes: 4 axes (standard structure)

- Applicable Scenarios: Small workpieces, high-precision batch bending

From an industry perspective, this type of equipment is typically used for:

- Precision sheet metal processing

- Electrical cabinets, small chassis

- Stainless steel decorative parts

- Electronic/communication structural parts

40T 1000MM CNC Press Brake Basic Parameter Table:

Different press brake manufacturers and specific order configurations will result in variations in throat depth, stroke, opening height, shaft configuration, speed, power, precision, and hydraulic component brands. Therefore, the actual technical parameters should be based on the final equipment configuration table and manufacturer drawings.

2. Core Structure and Technical Components

1) Machine Body Structure

- The entire structure is constructed of high-strength welded steel.

- Tempering/aging treatment ensures long-term non-deformation.

- Compact design, small footprint, suitable for small to medium-sized workshops.

Small tonnage equipment emphasizes:

- Rigidity and precision are prioritized. Compactness and economy are equally important.

2) 4-Axis Control System Analysis

The standard 4-axis system is the core configuration of this equipment:

Functions:

- Ensure consistent bending angles

- Enhance multi-process automation capabilities

- Reduce manual adjustments

The CNC system can control the slider position in real-time with a closed-loop control accuracy of ±0.01mm.

3) Backgauge System

- High-precision ball screw + linear guide

- X/R axis CNC positioning

- High repeatability

Advantages:

- Improve batch production consistency

- Reduce manual measurement errors

4) In-depth analysis of the EL15T CNC system

The EL15T is the core control unit of this equipment, independently developed by a domestic manufacturer.

System Features

- 15.6-inch touchscreen + Linux system

- Supports multi-language operation

- Fast start-up and stable operation

Programming Methods

- Data programming (parameter input)

- Graphical programming (2D visualization)

- Debugging mode (rapid trial bending)

The system can automatically calculate:

- Bending angle

- Unfolding length

- Backgauge position

- Pressure parameters

Core Advantages

- Easy to learn (beginners can quickly operate)

- Automatic calculations reduce reliance on manual experience

- Supports multi-axis expansion (future upgrade potential)

- Can be integrated with automated production lines

Positioning: High-performance, cost-effective entry-level intelligent system

3. Summary of the Core Advantages of the WEK 40TX1000mm CNC Press Brake

These advantages can be summarized in the following 10 points:

1) Compact 40Ton pressure configuration: Suitable for large-scale production of thin sheets and small workpieces.

2) 1000mm bending length: Suitable for small, precision sheet metal work.

3) EL15T CNC control: Enables digital programming and operation.

4) 4-axis control: Y1/Y2/X/R meet the needs of conventional multi-process bending.

5) Dual-cylinder synchronous control: Improves the stability of slide block operation.

6) CNC back gauge: Reduces manual measurement and positioning errors.

7) Multi-process programming: Suitable for continuous bending of complex parts.

8) Compact machine body: Saves workshop space.

9) Strong adaptability to various product types: Suitable for customized sheet metal production.

10) Suitable as a precision small bending unit: Especially suitable for the production of electronics, electrical, instrumentation, chassis, and small structural parts.

SHENCHONG WEK 40T 1000MM CNC Press Brake (EL15T 4-axis) is a high-performance, cost-effective CNC bending machine that is both compact and sophisticated.

Its core competitive advantages are:

Small workpieces → Compact equipment → Multi-axis CNC → Rapid positioning → Stable and repetitive production.

It features:

- High precision (±0.01mm level)

- Simple operation (graphical programming)

- Low cost (advantage of domestically produced systems)

- High flexibility (for multi-variety production)

Especially suitable for:

- Precision sheet metal companies

- Small and medium-sized processing plants

This 40-ton compact CNC bending solution, equipped with the EL15T control system and 4-axis CNC configuration, provides stable, efficient, and flexible processing capabilities for small precision sheet metal, multi-variety parts, and high-frequency bending production.
